JTB CAD Automation Tools 5.3 released

JTB CAD Automation Tools for AutoCAD has been updated to version 5.3 and got a bug fixed.

  • Fixed bug in AUTOINS command that showed error "no function definition: XREFPATHTYPE".

If you love to use Excel spread sheets to make edits then JTB CAD Automation Tools is for you as you can do a lot of AutoCAD automation with help of Excel like creating new drawings based on templates (useful for electrical diagrams and more), update title block attributes, inserts text, blocks or xrefs, run custom LSP files and much more.

Tuesday, August 15, 2017

How to fix problem with multiple ribbon tabs for apps in AutoCAD

Have you run into the problem with apps (plug-ins or add-ins) showing up in separate ribbon tabs? AutoCAD, AutoCAD Architecture, AutoCAD Civil 3D, AutoCAD Electrical, AutoCAD MEP, AutoCAD Map 3D, AutoCAD Mechanical, AutoCAD P&ID, AutoCAD Plant 3D and possibly other AutoCAD verticals have this problem.

I noticed this problem in also AutoCAD Architecture 2018. Note even the updates have fixed this.

Steps to solve this were found here.

(Note that Steps 2-4 are not necessary for 2015 and newer, though you may just want to check that the alias is there.)

1. Open the Customize User Interface (CUI) dialogue box by typing the CUI command (or choose Customize from the Workspace drop down list)

2. Under Customizations in All Files, and All Customization Files, expand Ribbon > Tabs and select Add-Ins

3. Under Properties > Advanced, click on the [...] that appears next to Aliases

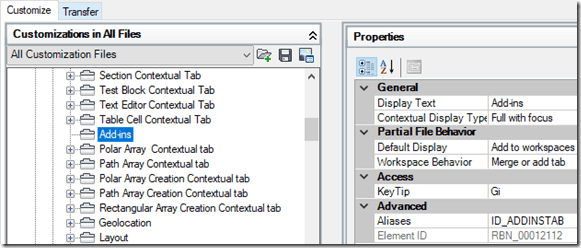

4. Type ID_ADDINSTAB in the Aliases dialogue box, then click OK

5. Under Customizations in All Files, expand Workspaces and select [Your Workspace]

6. Under Workspace Contents, click on Customize Workspace (the Workspace Contents values should turn blue)

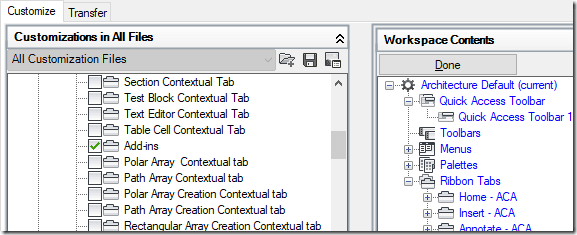

7. Under Customizations in All Files, scroll down and check the box next to "Add-Ins" (under Ribbon > Tabs)

8. Under Workspace Contents, click Done

9. Under Customizations in All Files, expand Partial Customization Files

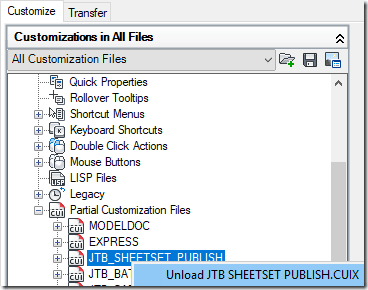

10. Right-click each plug-in .CUIX that you have and choose "Unload..." (examples of plug-ins are: SKETCHUPIMPORTSKP, CHRONICLE, APPMANAGER

11. Click OK at the bottom of the CUI dialogue box

12. Make sure to select Add-ins from the left pane and change Show to Yes

13. Restart AutoCAD

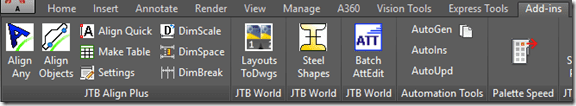

Much better:

Monday, August 14, 2017

Altair HW monitoring with JTB FlexReport tip

Altair HW now uses almutil.exe, take copy of this file and rename to lmxendutil.exe and put in the JTB FlexReport folder and point to the location of it in JTB FlexReport Config>LM-X.

With JTB FlexReport you can report on and monitor license usage.

Saturday, August 5, 2017

AutoCAD Architecture 2018.0.2 Update

AutoCAD Architecture 2018.0.2 Update was released Aug 1, 2017 and comes with these fixes. Get it via Autodesk Desktop App or from the Autodesk Account website. It’s not on the Autodesk Knowledge Network so it’s probably only for those on maintenance/subscription.

  • Fatal error caused due to unwanted increase in windows graphic objects during AEC object insertion.
  • The viewport layers do not stay frozen on MVBlocks. Related to External References.
  • AEC Objects in Xref with display override frozen in viewport still plot.

Readme

In the About dialog box we can find the Product Version: 8.0.60.0 and if you want to find it using AutoLISP here’s how: How to know what service pack is installed for AutoCAD

See also AutoCAD Architecture and MEP 2018.0.1 Update and AutoCAD 2018.1 Update.
