Tuesday, April 1, 2014

Autodesk AutoCAD 2015 trial available

Autodesk AutoCAD 2015 was released last week and now available as trial too.

As you can see AutoCAD has a new updated look with a the theme darker. There are also several nice new features to consider. I’m updating the page about AutoCAD 2015 so it’s not yet complete and I’ll post more about it later on too.

Most JTB World’s apps will just work with AutoCAD 2015 as they are and where needed they soon will be updated to work fully with AutoCAD 2015.

Tuesday, March 25, 2014

DWG TrueView 2015 can remove educational plot stamps

If you visit www.autodesk.com/trueview you will find that the English version of Autodesk DWG TrueView 2015 now is available for download. Note that only Windows 7, Windows 8 and Windows 8.1 are supported operating systems.

Direct links to download:

DWG TrueView 2015

By default there is a dark color scheme and some icons have an updated look. Layout Tabs is a new icon that lets you display or hide layout and model tabs. The status bar where the coordinates are is now on the same row as the layout tabs.

The “New Tab” lets you open files and access Recent Documents.

In DWG Convert Modify Conversion Setup, “Remove Design Feed” is a new option.

DWG Convert 2015 Setup Settings

In the post AutoCAD Educational Version - Plot Stamp Not Detected! I speculated that “Autodesk DWG TrueView 2015 and DWG Convert to batch re-save drawings to get rid of the stamp.” and after testing I can verify that DWG Convert now remove the educational plot stamp just by re-saving the drawings. If you want to know if you have any of these infected drawings in your network use JTB World’s EduFinder.

Goodbye to  “Educational Version - Plot Stamp Detected This drawing will display the message, "PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT," Do you want to continue? If you continue, the message will mark this drawing and any drawings that reference it.”

SMS and SCCM Integration ReadMe
Improvements in Autodesk® deployment technology allow many administrators to streamline their process of integrating Autodesk deployments on Microsoft® Systems Management Server (SMS) and System Center Configuration Manager (SCCM). In most cases, Autodesk deployments can now be advertised using a single program line instead of individual program lines for each component in the deployment.
To advertise a deployment with a single program line, use the following syntax:
.\Img\Setup.exe /W /Q /I .\Img\<deployment name>.ini /language en-us
This sample command line assumes that the package contents are defined at the root folder of your Autodesk product deployment folder, and that the product language is US English (en-us). If you have created a combined deployment and you would like to advertise it, use the following syntax:
.\img\Setup.exe /w /x86 <adminImage's name> /x64 <adminImage's name>

Software Requirements
Before creating an SCCM advertisement, ensure that all target computers have Microsoft .NET 4.0 Framework installed. Windows XP computers need Direct X installed prior to receiving a 2011 or later Autodesk product advertisement.

Component-level Advertisement
Special circumstances such as execution time limits may require you to advertise an Autodesk deployment at the component level. Please refer to <deployment name>_SCCM.txt for a listing of required program lines in the order they must occur on target computers. These commands will vary by deployment. For long command lines, use a batch file.

See also this post on install/uninstall.

This gives us an early sneak peek of what AutoCAD 2015  will look like. If you wonder about its system requirements they are already available here. You also find that AutoCAD 2015 is the only version officially supporting Windows 8.1 at this point.

I’ve also heard that Autodesk Subscription downloads already have 2015 available as well as the news that Network Licensing for AutoCAD LT 2015 is available and thus JTB FlexReport will also be able to monitor these FlexNet-based network licenses.

If you want to compare 2015 to what DWG TrueView 2014 looks like.

Monday, March 24, 2014

AutoCAD 2014 for Mac Service Pack 1

AutoCAD 2014 for Mac Service Pack 1 is available here and AutoCAD LT 2014 for Mac Service Pack 1 is available here.

Readme details about AutoCAD 2014 for Mac Service Pack 1:

Problems Reported with the Customer Error Reporting Utility
As a result of detailed information from customers who used the Customer Error Reporting (CER) utility, a number of problems were identified and fixed. Updates have been made to the following features:
Block
-Crash when making blocks in some situation.
Copy/paste
-Crash when copy/paste in some drawings.
Drafting
-Random crash during drawing and editing.
Startup
-Crash at startup due to some user profiles missing.
-Random crash at startup when getting the Displcay Card infomation.
View
-Crash when click the viewport control label.

The following general changes and improvements have been made:
AutoCAD LT
-Align command missing in LT.
-Image underlay shows twisted or white/black bands when zooming in canvas.
License
-Cannot activate AutoCAD with some suite serial number, like Education Master suite serial number.
Other
-System animation(scrolling or switching desktop) glitches after force quit AutoCAD in some situation.
-Typo in lynda.com link in AutoCAD.
-Mis-use of Lucida Grande font.
Plot
-AutoCAD hangs when plotting drawings in some situation.
-Plot stamp now shows the system time on local machine.
-Image underlay is not fully displayed in plotted result.

And an enhancement: Now you can Reset AutoCAD at startup by holding Shift+click AutoCAD(or AutoCAD LT) icon. This helps in the case when you cannot start AutoCAD normally.

More about AutoCAD for Mac.

Monday, March 3, 2014

SSMPropEditor 5.1 released

JTB World’s SSMPropEditor version 5.1 is now available. If you use the Sheet Set Manager in AutoCAD this app can save you a lot of time with its ability to index sheets, increment property values and edit Sheet Properties or Sheet Custom Properties on multiple sheets at the same time.

The main news in this release are:

  • Added Polish language.

  • 30-day trial added without need to request a trial license.
  • Added ability to drag and drop a DST file into SSMPropEditor to open the Sheet Set.
  • Improved performance while exporting and importing to and from Excel.
  • Added functionality to rename matching XML file when renaming sheets belonging to Project Navigator.

For more details see the revision history.

Download SSMPropEditor and give it a try.

If you are interested in other useful AutoCAD apps take a look at SmartPurger, JTB Sheet Set Creator, HVACPAC, HTools, AutoCAD Automation Tools, DigSigStamp, Batch Publish for AutoCAD, DimensionPatrol, TransTips or OffsetInXref.

If you need any custom app created, small or large, for AutoCAD and its verticals or Revit you are welcome to contact us.

Monday, February 17, 2014

How to test if a DVB file is loaded using AutoLISP

This is a sample code snippet showing how you with AutoLISP (or rather Visual LISP) can test if a certain VBA DVB file is loaded in AutoCAD or not.

(vl-load-com)
(defun isDVBLoaded (dvb / oVBProjs c found)
  (setq oVBProjs (vlax-get (vla-get-vbe (vlax-get-acad-object)) "VBProjects"))
  (setq dvb (strcase dvb))
  (repeat (setq c (vla-get-count oVBProjs))
    (if (vl-string-search dvb (strcase (vla-get-FileName (vla-item oVBProjs c))))
      (setq found T)
    )
    (setq c (1- c))
  )
  found
)

Here’s how to call the function:
(isDVBLoaded "jtbworld.dvb")

Monday, January 27, 2014

AutoLISP progn error: too many arguments SOLVED

I was working on an existing AutoLISP program for AutoCAD while I found that during “Check Text in Editor” (or “Check Selection”) I got an error. It worked fine to just load and run the program but check did not. Trying to make an application (FAS or VLX) will also give this error.

; error: too many arguments: (PROGN 1 2 3 ... )

It was really confusing until I realized that progn only accepts 255 arguments. Often progn is used to together with if to allow more expressions to be evaluated and in a case like that it can easily happen that there are more than 255 arguments.

This is en example of how to reproduce this:

(progn
  1    2    3     4    5       6    7    8      9    10   11     12   13   14
  15   16   17     18   19   20    21   22      23   24   25     26   27   28
  29   30   31     32   33   34    35   36      37   38   39     40   41   42
  43   44   45     46   47   48    49   50      51   52   53     54   55   56
  57   58   59     60   61   62    63   64      65   66   67     68   69   70
  71   72   73     74   75   76    77   78      79   80   81     82   83   84
  85   86   87     88   89   90    91   92      93   94   95     96   97   98
  99   100  101     102  103  104    105  106  107  108  109     110  111  112
  113  114  115     116  117  118    119  120  121  122  123     124  125  126
  127  128  129     130  131  132    133  134  135  136  137     138  139  140
  141  142  143     144  145  146    147  148  149  150  151     152  153  154
  155  156  157     158  159  160    161  162  163  164  165     166  167  168
  169  170  171     172  173  174    175  176  177  178  179     180  181  182
  183  184  185     186  187  188    189  190  191  192  193     194  195  196
  197  198  199     200  201  202    203  204  205  206  207     208  209  210
  211  212  213     214  215  216    217  218  219  220  221     222  223  224
  225  226  227     228  229  230    231  232  233  234  235     236  237  238
  239  240  241     242  243  244    245  246  247  248  249     250  251  252
  253  254  255     256
)

The workaround I used was to add a few extra nested progn and problem solved.

Another way is to use cond like this:
(cond (T
1 2 3 all the way to 256 or higher will work fine
))

And of course create a new function with defun.

But what about using (repeat 1 …) as a workaround saving an extra pair of parentheses compared to cond? Unfortunately repeat has the same limitation of 255 expressions as progn.
; error: too many arguments: (REPEAT 1 1 2 ... )

What then is progn other than a way to bundle together a lot of expressions?

Progn evaluates each expression sequentially and returns the value of the last expression. In the progn example above the returned value would be 256.

Monday, January 20, 2014

Updates for Inventor and other Autodesk News and Tips

Here’s some recent links that can be useful.

Update 2 for Inventor 2014 Service Pack 1 - DL22744369

Update 4 for Inventor 2013 Service Pack 2 - DL22744178

Autodesk Privacy Statement was updated March 19, 2013

Crash when launch Autodesk software on Windows 8.1 with dual video cards where one is Intel HD Graphics 4000 - DL22827547

MrSID (4th gen) crashes AutoCAD - TS22852592
When you try to insert or connect to a MrSID (*.sid) file in AutoCAD Map 3D, Civil 3D, or Raster Design, the software crashes with a Fatal Error.
4th generation MrSID images are not yet supported by AutoCAD-based products.

“An error occurred attempting to create the transmittal. Please make sure the target location is writable and that the target disk has sufficient space.” - TS22852599

Error: "There was a problem adding data to Map" when connecting to WMS in Civil 3D or Map 3D - TS22852604

When using Parallels on Mac, the activation screen displays large overlapping text - GS22859328

How to Create the SCCM Software Installation Package - TS22029889

How to remove files left after a failed AutoCAD installation - TS21942335

How to repair an AutoCAD installation - TS22857015

Creating a layout profile, grips become offset from the crosshairs - TS22859189

Raster Design does not start if Windows roaming profiles are used - TS22859271

Modeling Operation Error: Missing double in restore file - TS22859321

Geomap function does not show a map - TS22859310

WMS not visible in AutoCAD Map - TS22859275

Slow performance when switching between layouts - TS22859315

Geotechnical Module: After importing borehole data all results seem to be scaled - TS22859305

Error: This drawing was created with a newer version of Civil 3D - TS22859326

Error: 1: 5 2: adlmPITSetProductInformation failed. 3: 2 + Security Permissions - Up and Ready

Monday, January 13, 2014

SmartPurger 3.5 released

SmartPurger 3.5 from JTB World is now available both from our product page as well as on Autodesk Exchange Apps. A free trial is available of SmartPurger so you can give it a try.

SmartPurger not only purges multiple drawings but can also batch process most anything you like if you have any Script or AutoLISP files you want to run on a bunch of DWGs. If you don’t know how we can help to create it so you can automate your manual tasks. An AutoCAD based application is required to run SmartPurger but it can also work with other DWG compatible CAD applications.

These are the bug fixes for this release:

-Fixed a bug where accoreconsole did not save to specified DWG version
-Purge multileader styles bug fixed where it did not always purge these styles.
-Handle dialog box about VBA not installed
-Fixed bug where Educational Version - Terminated sometimes show up in status column even though the drawing is not educational

If you are interested in other useful AutoCAD helper functions take a look at JTB Sheet Set Creator, DigSigStamp,Batch Publish for AutoCAD, DimensionPatrol, TransTips or OffsetInXref.

If you need any custom app created, small or large, for AutoCAD or Revit you are welcome to contact us.

Tuesday, January 7, 2014

AutoCAD P&ID 2014 Service Pack 1, Autodesk Beta, News and Hotfixes

Anyone with an Autodesk account can access the entire library of video recordings and class handouts from more than 600 classes from AU 2013 in Las Vegas—for free at the AU website, login and click on Classes on Demand.

Autodesk Completes Acquisition of Circuits.io (Autodesk 123D Circuits) - press release

Autodesk Beta Season is in Full Swing - Do you want to test & help improve the next versions of Autodesk products? https://beta.autodesk.com/. If history is followed future products can be AutoCAD 2015, Revit 2015 and so on.

Inventor 2014 SP1 crash on Start-up Windows 8.1 with Intel HD Graphics 4000 - Up and Ready

Working with Inventor and antivirus software - TS22811064
When you work with Inventor and there is antivirus software active on your machine, you may experience slow performance. For example, you may have slow response times while using Inventor and the refresh of Inventor UI may be slow. This is caused by antivirus software and you would like to optimize your performance.

Hotfix: Fix Fillet Translation, Punch Note Untranslation in Inventor 2013/2014 - DL22823934

Hotfix: Correct issue with “Cut” feature which cannot be selected in a “Pattern” operation in Inventor 2014 - DL22823063

Hotfix: Fix incorrect hotkey issue for command “Delete” in context menu in Inventor 2013 - DL22823494

Hotfix: Correct untranslation of column headers in sheet metal column headers in Inventor 2012/2013 - DL22823919

Sites disappear, but feature lines remain until audit in AutoCAD Civil 3D 2014 - TS22811035
Sites are disappearing from the drawing, but the Feature Lines remain. When you run AUDIT or RECOVER, the Feature Lines then disappear.

Direction in Object Viewer does not match UCS in AutoCAD Civil 3D - TS22813499

Xrefed survey figures plot with the wrong plot style in Civil 3D 2013 - TS22814640

Error: "Please wait while Windows configures AutoCAD Raster Design" - TS22817946

Wipeout draw order is not working with viewports - TS22817919

Error: "Not enough free RAM for HIDE--some lines will be hidden incorrectly" - TS22824497

AutoCAD P&ID 2014 Service Pack 1 - DL22757675
This Service Pack does not apply to AutoCAD Plant 3D 2014 Extensions 1 or 2 (Subscription). The updates in this Service Pack are included in Extension 2. AutoCAD 2014 Service Pack 1 is included in this service pack.

Issues fixed with this Service Pack:

P&ID Drawings

  • A new slregroup command has been added to make it easier to manage line groups. For more information, see About P&ID Line (SLINE) Grouping.
  • The Edit Sline Group... command was not available in the shortcut menu.
  • Control valve substitution did not work. If the substitution palette does not display correctly, you can erase and replace the control valve.

Customer Reported (CER) Defects

3D Model

  • File open command would fail when a drawing is opened that contains custom entities with embedded 3D solids.
  • Return bends would not always align with routed pipe.
  • Parts created with plantpartconvert could not be selected in the Spec Editor.
  • Ladders and structure did not always display correctly in an Ortho view.
  • Butterfly valves placed into a short pipe segment could cause the program to shut down unexpectedly.

Isometric Drawings

  • Splitting at a branch would sometimes place components outside the draw-area.
  • Tap weld was assigned to the same line number as the olet.
  • Improvements to isometric drawings including annotation and dimension placement.

Spec Editor

  • Flange thickness in inches did not update correctly for metric projects.

Tuesday, December 17, 2013

How to recover and fix problematic or corrupt DWGs in AutoCAD

This is a great resource for AutoCAD users. Troubleshooting corrupt DWG files - TS22753433

Usually there is a way to correct drawings with technical problems.

Issue
An AutoCAD DWG file cannot be opened and causes AutoCAD to show error messages or alerts, or to freeze or crash.

Open Drawing - Damaged File - The drawing file requires recovery. Errors were detected in the drawing. The file cannot be opened without being recovered.

The drawing file requires recovery.

Drawing file is not valid.

Drawing file is not valid.

Cause
Possible causes of file corruption:

  • Network (transmission errors, file locking, latent writing of data)
  • Storage media degradation (bad sectors on a hard drive)
  • Defective or failing RAM
  • Operating system issues
  • Power surges
  • 3rd - party applications running inside the Autodesk product
  • DWGs created or saved by non-Autodesk non-RealDWG products
  • AutoCAD terminated while saving DWG (less frequent)

Recommendation: Audit and purge before saving

Solution
If a file cannot be opened, take the following steps:

  • RECOVER command
    --Recovers a selected drawing file
    --If successful, open and run AUDIT command
    --Evaluates drawing integrity and possibly more error correction
    --Set system variable AUDITCTL=1 to create a report of audit results

The drawing file was recovered.

  • RECOVERALL command (introduced in AutoCAD 2008)
    --Recovers a selected drawing file
    --Attached and nested xrefs are also opened, repaired, resaved, and closed
  • INSERT and EXPLODE
  • Start a new DWG with no template
    --Run INSERT and selected the corrupted drawing
    --Check the “Explode” option

If a file can be opened but still shows signs of corruption, take the following steps:

  • RECOVER and AUDIT
  • PURGE command
  • Copy and Paste into a new drawing
  • AECTOACAD (-EXPORTTOAUTOCAD)
    --Exports to a pure AutoCAD file in selected drawing version
    --Strips potentially corrupt custom objects
  • WBLOCK command
    --Set all layers ON, THAWED and UNLOCKED
  • WBLOCK all objects in the drawing to an external block file
  • INSERT the resulting file as block into a new drawing (check the “Explode” option or EXPLODE the block after inserting)
  • AUDIT and PURGE
  • DXFOUT/DXFIN
    --DXFOUT to create a new .dxf file
    --Start new drawing and DXFIN to import the new .dxf file
    --Also try exporting as AutoCAD 12 DXF
  • XREF into a new drawing and BIND

See also Recover damaged drawing when RECOVER command not successful - TS19369

  • Using Windows Explorer or the Windows Find feature, search the entire hard disk for autosave (SV$) files or backup (BAK) files with the same name as the drawing. Rename those files so that they have a DWG extension, and you may be able to open them. (By default, SV$ files are in the %TEMP% folder and BAK files are in the same directory as the DWG file.)
  • Use WBLOCK command to insert the corrupt drawing into a new drawing. Insert at the 0,0,0 coordinate.
  • Open the drawing in a previous release of the software, if available (AutoCAD only).
  • Export the drawing as a DXF™ file, then import the DXF file.
  • If the drawing was last saved in an older format, try using partial open to load the drawing one layer at a time until you find a layer containing an error. Then repeat, skipping that layer next time. See related documents for instructions on using the partial open feature (AutoCAD only).

Drawing Recovery Manager (command DRAWINGRECOVERY)
Displays a list of all drawing files that were open at the time of a program or system failure. You can preview and open each drawing or backup file to choose which one should be saved as the primary DWG file. After a program or system failure, the Drawing Recovery Manager opens the next time you start the application. Drawing Recovery Manager displays a list of all drawing files that were open. The System Variable RECOVERYMODE controls whether drawing recovery information is recorded after a system failure and whether to show the Drawing Recovery Manager or not.

If you want to help yourself, Autodesk and other AutoCAD users make sure to send in any errors to Autodesk when you see the Customer Error Report dialog box (CER).

Finally a solution that sometimes helps if AutoCAD cannot fix the problem is to try to fix the drawing in another program that can open and save DWG files. The more users having the similar problem the better chance it will be fixed in a service pack or future version. Eventually you might get an email saying the problem is fixed.

You may find JTB World’s SmartPurger useful to batch process drawings that needs to be fixed. It includes Audit and Purge functionality as well as a lot more.

Friday, December 13, 2013

Autodesk tips, tricks and news like the AEC Feed

AEC Feed keeps you up-to-date on AEC industry news, trends and the latest updates from your favorite Autodesk AEC software products. You can download the app from Apple App Store (note: iPad 6.0 or higher required). Via Beyond Design

Autodesk University 2013 has ended and the Recorded streams of keynotes, forums and some classes are available if you missed it live or online.

FLEXnet Licensing error:-15,10 when performing Status inquiry on LMtools - TS22754152
Issue: FLEXnet Licensing error:-15,10. System Error: 10049 "WinSock: Invalid address" When performing Status Inquiry on LMtools.
Windows firewall interfering with license server

Educational Watermarks [Plot Stamp] + AutoCAD 2014 SP1. Please be very cautious when using an Educational version of AutoCAD 2014 SP1.  There is a STILL an EDU watermark [plot stamp] but the warning is now suppressed in SP1. - via Up and Ready
Check also out EduFinder by JTB World to find and identify AutoCAD drawings (DWG) that contain the educational stamp.

Stability issues and unexpected exit when you click on a command in the contextual ribbon tab in Autodesk Revit - TS22753368
Customers have been able to solve this issue by updating the WACOM drivers installed on the system.

Some map features are not labeled - TS22745944
Although you've created labels in the Style Editor, many features do not display their labels. Applies to AutoCAD Map 3D and AutoCAD Utility Design.

QSAVE does not work because AutoCAD considers the drawing to be read-only - TS22745933
Suddenly you are unable to save an open drawing because AutoCAD considers the file as read-only. The drawing you are working with is saved on a network. Applies to: AutoCAD Map 3D 2014

Extraneous spatial data types showing in Style Editor in AutoCAD Map 3D/AutoCAD Civil 3D - TS22757634

Cannot select schema in Bulk Copy target field in AutoCAD Map 3D - TS22754136

FDO connection still shows Oracle feature classes in Map 3D that were removed - TS22754647

Error: "Failed to create the Data Source file" when trying to Attach Access Database in Map 3D - TS22754416

Dialog box for Define Query does not appear in Map 3D (ADEQUERY command) - TS22753406

Productstream Professional 2011 Client Update for Windows Internet Explorer 10 - DL22757907

Strange graphics behavior and frequent crashing on launch of AutoCAD - TS22754147
Issue: Your AutoCAD-based product either crashes while launching, or when AutoCAD loads,or you notice abnormal behavior in the user interface.
Symptoms: AutoCAD launches but then immediately crashes.
The AutoCAD dmpuserinfo.xml file shows "32-bit" within the <DisplayMode> tag, even though your system is 64-bit.
If AutoCAD launches successfully, and you switch to a Classic workspace, some of the tools and tabs disappear from the user interface.
A repair and/or reinstall of AutoCAD has not resolved the issue.

When I try to install I get an Internal Error 2738 (this can apply to many different Autodesk products) - GS22754600

Objects not visible after zoom extents in AutoCAD - TS22757632
In paper space, the xref and other drawn entities are shown. While in the model space, none of the objects are visible. Performing a zoom extents results in multiple small dots appearing. While trying to zoom to one of these dots, nothing is showing and you cannot see the xref or other drawn entities.
Cause: Objects in the drawing were grouped far away.

Zero upstream distance error for Culvert model in River and Flood Analysis in AutoCAD Civil 3D 2014 - TS22757720

Zoom to profile view does not work in River and Flood Analysis Module in AutoCAD Civil 3D 2014 - TS22757610

Monday, November 25, 2013

Autodesk support for Windows XP ends in 2014 and other Autodesk news

Here’s some recent news from Autodesk:

Autodesk Community has been updated. Check it out the new look.

123D Catch 2.0 for iOS makes 3D photography and model creation epically better.
Guided capture tools give you dynamic feedback as you take your photos.
The new gallery provides a streaming showcase of captures from around the world.
And underneath the hood is an entirely new pipeline that makes better, faster, more amazing 3D models. More here.

Microsoft Windows XP support for AutoCAD products FAQ - GS22683753
Autodesk support for the Microsoft Windows XP operating system ends on January 1, 2014 for all new and upgraded versions of AutoCAD products released in 2014 and later. Versions of AutoCAD products (AutoCAD, AutoCAD LT, AutoCAD Architecture, AutoCAD Electrical, AutoCAD Map 3D, AutoCAD Mechanical, AutoCAD MEP) released prior to January 1, 2014 will continue to be supported on the Windows XP operating system.

The Revit 2014 Daylighting Analysis (RDA) plug-in uses the Autodesk 360 Rendering cloud service to perform very fast and physically accurate daylighting analyses from within Revit. More here.

Hotfix - Autodesk Inventor 2014 (Polish only) Flat pattern text parameters missing - DL22712527

Revit LT 2014 Update Release 2 - DL22607186

Tuesday, November 19, 2013

DWG Columns 2.0 now with DXF support

DWG Columns by JTB World has been updated to version 2.0.

The main news is the support for DXF files. DXF version 2004 and newer can hold drawing properties and are supported. Older DXF versions will only show the drawing version. Both ASCII and binary DXF files are supported.

InfoTip/ToolTip can also be seen when hovering over a DWG or DXF (even for BAK, DWT, DWS, SW$ files).

The Details Pane in Explorer will also show the properties.

Finally a 30-day trial has been made available so you can try DWG Columns with full functionality in your environment before purchasing.

DWG Columns works with DWG and DXF files edited or created with applications like AutoCAD, Dassault Systemes DraftSight, Caddie, progeCAD, Bricsys BricsCAD, IMSI TurboCAD, GRAPHISOFT ArchiCAD, nanoCAD, MicroStation, ZWCAD+ and others. In AutoCAD DWGPROPS command is used to edit the drawing properties.

Get the trial or purchase on the DWG Columns page.

See also our PROPULATE tutorial that shows how the properties can be updated based on title block data found in block attributes.

Friday, November 15, 2013

Autodesk updates and news like Smithsonian x3D Explorer

Hotfix - Inventor unexpectedly exits after updating to Windows 8.1 - DL22541232

AutoCAD 2013 for Mac Service Pack 2, This update resolves compatibility issues on the new Mac OS X Mavericks and more - DL22614738

AutoCAD LT 2013 for Mac Service Pack 2 - DL22617033

From the Press release: Autodesk and the Smithsonian today debuted the Smithsonian x3D Explorer, an interactive 3D educational tool accessible to anyone via the web. Autodesk built the tool exclusively for the Smithsonian to democratize access to prized specimens and to bring their stories to life. The public can now experience priceless objects digitized by the Smithsonian like never before, from seeing “behind the glass” to holding 3D printed replicas.

Here’s a detail from 1903 Wright Flyer:

Tuesday, November 12, 2013

JTB Sheet Set Creator app for AutoCAD

JTB Sheet Set Creator is an add-in for AutoCAD from JTB World that creates new Sheet Sets and Sheets based on an Excel template. If you often create new Sheet Sets JTB Sheet Set Creator can save you a lot of time and efforts.

  • Sheet Set Properties can be populated.

  • Sheet Set Custom Properties can be defined, created and populated.

  • Sheet Properties can be populated.
  • Sheet Custom Properties can be defined, created and populated.

  • Sheets (drawings) can be defined, created and have their properties populated.

When ready the Sheet Set can be opened within AutoCAD.

Download trial and learn more about this app on the JTB Sheet Set Creator page. JTB Sheet Set Creator Trial can also be downloaded and installed as an app from the Autodesk Exchange Apps site.

JTB World also have these AutoCAD Sheet Set related apps. SSMPropEditor, DST converter and Sheet Set Manager Path Edit

If you are interested in other useful AutoCAD helper functions take a look at DigSigStamp, Batch Publish for AutoCAD, DimensionPatrol, TransTips or OffsetInXref.

Thursday, November 7, 2013

DigSigStamp digital signatures stamp app for AutoCAD

JTB World’s DigSigStamp for AutoCAD allows you to specify a block that will change its display when plotted to indicate whether the drawing had a valid digital signature at the time of plotting.

The DigSigStamp AutoCAD plugin helps you identify visually when drawings have valid digital signatures. You use one of the plugin's commands to specify blocks to display when a drawing has a valid digital signature and when it does not. You then assign a particular block reference - which usually exists in the title block of your drawing - that will change its display to one of these two block definitions depending on the state of the drawing. The application even works when plotting, an operation that typically invalidates a drawing's digital signature.

The following are just examples of how the blocks can look like. The design of them is completely up to you. Digitally Signed example. This drawing has a valid digital certificate.

Invalid. This drawing does not have a valid digital certificate.

Unverified example. Digital signature verification application is not enabled.

DigSigStamp can be further customized by JTB World to fit your specific needs and requirements.

Download a trial and learn more on the DigSigStamp web page as well as on Autodesk Exchange Apps site.

If you are interested in other useful AutoCAD helper functions take a look at Batch Publish for AutoCAD, DimensionPatrol, TransTips or OffsetInXref.

Sunday, October 27, 2013

Where is my AutoCAD Palette and how can I restore it?

I got this question and wanted to share the solution.

I am missing my sheet set manager window. I wanted to ask if you had any tips on getting it to return. Type SSM, command line acts like its visible but its not. I feel like its minimized somewhere but I cant find it. Any pointers would be greatly appreciated.

Examples of windows or palettes that can disappear (usually outside the visible area of the screen) are Sheet Set Manager (SSM), Design Feed, Tool Palette, Layer Properties Manager, DesignCenter (ADC), External References (Xref ESW), Markup Set Manager, Visual Styles Manager, command line, Quickcalc, Object Properties (OPM), Drawing Recovery Manager, Block Authoring Palette, Parameters Manager. You can fix or edit the coordinates of these in either FixedProfile.aws or Profile.aws files. These files are XML files and can be edited in an XML editor or Notepad.

You can also delete the file as AutoCAD will create a new one with the default settings next time AutoCAD is run.

Only edit this file when AutoCAD is not running. Make a backup of it just in case.
%APPDATA%\Autodesk\AutoCAD 2014\R19.1\enu\Support\Profiles\FixedProfile.aws
or

%APPDATA%\Autodesk\AutoCAD 2014\R19.1\enu\Support\Profiles\<Profile>\Profile.aws

AutoCAD 2014\R19.1\enu are parts of the path that is different depending on AutoCAD version, vertical and language.

<Profile> is the name of the AutoCAD profile. Default is “Unnamed Profile”.

Wondering what %APPDATA% is?
In XP: C:\Documents and Settings\%username%\Application Data
In Vista/W7/W8/W8.1: C:\Users\%username%\AppData\Roaming

Here is an example of a small part of what it might look like in the aws file:

<Tool CLSID="{BEBBB318-2898-4C03-ADA2-360DC6B7AA69}">
    <CAdUiDockControlBar Orientation="-1" AllowDocking="1">
        <FloatInfo Left="44" Top="208" Width="230" Height="384"/><DockInfo Left="0" Top="0" Width="0" Height="0" MRUDockID="0"/></CAdUiDockControlBar>
    <CAdUiPaletteSet ActivePaletteIndex="0" TitleBarLocation="0" AutoRollup="1" Name="Sheet Set Manager" Style="46" Opacity="100" RolloverOpacity="100" Visible="1"/>

And it is quite obvious that the location of the palette is determined by Left and Top values.

Tawfik mentioned in a comment also another solution. Start a command that shows the palette in question, hold down Alt and press Space, then press M and finally use the arrows to move the palette.

See also Clear sticky Sheet Sets from Recent Documents List in AutoCAD and Palette Auto-hide Speed as AutoCAD app

Wednesday, October 23, 2013

AutoCAD 2014 for Mac and AutoCAD LT 2014 for Mac

AutoCAD 2014 for Mac and AutoCAD LT 2014 for Mac were released October 22, 2013.

AutoCAD 2014 for Mac

Retina display support is of course a much welcome news. The right side of the image shows what it look like now compared to before on the left side.

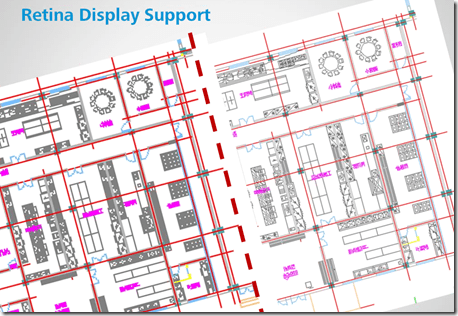

AutoCAD 2014 for Mac Retina display support

Autodesk 360 Sync for your drawings and design files. On a Mac, Autodesk 360 support only includes file sync.

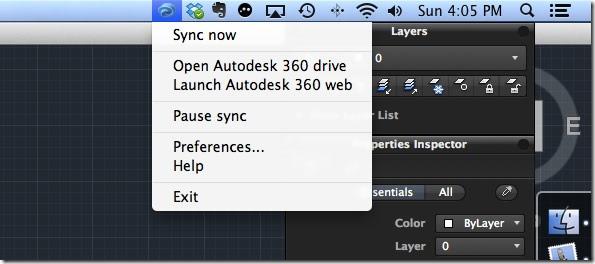

AutoCAD 2014 for Mac drawing sync

Compress, store, and distribute CAD for Mac files with “Package Drawing” that is similar to eTransmit as it is called in AutoCAD for Windows.

AutoCAD 2014 for Mac package drawing

Other news are Autodesk Exchange Apps, Secure load (enhances software security and helps prevent loading and running “unauthorized or malicious” AutoLISP applications), it’s now possible to set a default save-as version for your drawings in OPTIONS, ZeroDocWindow option in General tab, FIND command fixes, usability enhancements, including a new online help homepage, a reworked welcome screen, a print dialogue preview button, detailed print dialog panel expanded by default and of course support for OS X Mavericks.

The online Help Search is not working yet. (UPDATE. I have been contacted by Autodesk and informed about that the issue with the Help Search has been solved.)
http://docs.autodesk.com/ACDMAC/2014/ENU/index.html

A lot of AutoLISP documentation updates have been made. More on Lee’s blog post.

Function Listing (by Name and Feature) - Provides you with access to AutoLISP functions not only by alphabetic names but also by feature classification.

AutoLISP Developer's Topic Map - Listing of all essential topics in one page.

Gone is the separate Windows and Mac AutoLISP documentation, the function reference topics now call out what platform they are supported on.

New Commands

The following commands were added:

ETRANSMIT Packages a set of drawings and dependency files into one unit for sharing.

-ETRANSMIT From the Command line, packages a set of files for sharing.

ONLINESHARE Designates who can access the current drawing from Autodesk 360.

ONLINEOPENFOLDER Opens your local Autodesk 360 folder in Finder.

Changed Commands

The following commands were changed:

PLOT Plots a drawing to a plotter, printer, or file.

OPTIONS Customizes the program settings

WELCOMESCREEN Displays the Welcome window when you start the program.

NEWSHEETSET Creates a new project data (DST) file that manages drawing layouts, file paths, and project information.

FIND Finds the text that you specify, and can optionally replace it with other text.

New System Variables

The following system variables were added:

ONLINEUSERNAME Displays the username that is used to log into the Autodesk 360 account.

ONLINEDOCMODE Indicates whether a copies of your drawings and linked files are uploaded automatically to Autodesk 360.

ONLINEFOLDER Displays the location of your local Autodesk 360 folder in Finder.

SECURELOAD Controls whether AutoCAD loads executable files based on their location.

TRUSTEDDOMAINS Specifies the domains from which AutoCAD has permission to load and execute files that contain code.

TRUSTEDPATHS Specifies the folders from which AutoCAD has permission to load and execute files that contain code.

ONLINEUSERID Displays the ID associated with the Autodesk 360 backend system.

The feature comparison chart shows the differences between AutoCAD and AutoCAD for Mac.

The 30 day trial of Autodesk AutoCAD 2014 for Mac is now available at http://www.autodesk.com/products/autodesk-autocad/free-trial

If you have AutoCAD 2014 (for Windows) or the AutoCAD Design Suite your serial numbers works for the Mac version of AutoCAD 2014.

Customers can purchase AutoCAD 2014 for Mac or AutoCAD LT 2014 for Mac from the Autodesk Store, through CDW and Amazon, or from a local Value-Added Reseller.

AutoCAD for Mac is available worldwide in English and French.

AutoCAD 360, optimized for iPad Air and iPad mini with Retina display, will also be available on the App Store. On the new iPad, AutoCAD 360 opens files faster, and rendering and selection is also twice as fast.

Monday, October 21, 2013

AutoCAD app DimNotes 1.3 released

JTB World’s AutoCAD app DimNotes 1.3 has been released. The news are an added option to preset location and replace settings for each note individually as well as added option to use or not use space when the location is before or after. This makes it even quicker to add noted or comments to AutoCAD dimensions.

The note can be added Above, After with space, After without space, Before with space, Before without space or Below existing text. There is also an option "Replace" to completely replace the text so the associative dimension text is removed if the text is <>.

Location option Replace can be used to add both before and after the dimension. Say the existing dimension text is 28 and the note is (<>) the result will be (28). Even notes using control codes, Text Symbols and Special Characters like
\A0;<> {\H1.5x;}\A2;\H0.71x;%%p0.1 can be used with this result: 28 ±0.1.

Some examples with notes added before, after below or above.

DimNotes can also be downloaded and installed as an app from the Autodesk Exchange Apps site. Purchase is optionally available through this site as well as here.

Friday, October 18, 2013

Windows 8.1 AutoCAD Model Documentation Hotfix for 64-bit and more

Windows 8.1 is now available for all. I’ve used first the preview and recently the “RTM” and if you have Windows 8 I see no reason to not update. Here’s how to Update to Windows 8.1 from Windows 8. If you hesitated to update to Windows 8 before I think you really should consider Windows 8.1. I now prefer Windows 8.1 over any earlier Windows version and even without a touch screen I don’t miss the old Start menu especially after the Start button return in Windows 8.1.

There is one annoying bug I have after installing Windows 8.1 though. Windows Live Writer + Windows 8.1 paste/undo bug. Possibly related to the new Internet Explorer 11.

What about Autodesk products and Windows 8.1?

Model Documentation Hotfix for 64-bit Windows 8.1. This hotfix for AutoCAD and AutoCAD verticals fixes Model Documentation and IMPORT command related issues on 64-bit Windows 8.1. Download at DL22443084

Inventor Unexpectedly Exits on Startup on Windows 8.1. Windows reports: "The application was unable to start correctly (0xc0000142). Click OK to close the application." See solution at TS22238097

And finally another recent update from Autodesk: Cumulative Hotfix 2 for Autodesk Vault 2014 Service Pack 1 Download at DL22258964

  1. When two DWGs are referencing the same part number, and one of them is checked out, performing an Assign Item on the other would cause an error 1455.
  2. Resolved an issue that could result in preventing a server background task from running.
  3. Files checked into Vault, in a folder containing a single quote, would result in an 'Unknown Server Error' when selecting Data Cards from the Inventor Vault ribbon menu.
  4. Logging into ADMS with Windows Authentication and selecting the Administration option would result in the error 'Object reference not set to an instance of an object'.

How about software from JTB World? So far I’m not aware of any issues related to Windows 8.1


Some of the latest blog posts

Subscribe to RSS headline updates from:
Powered by FeedBurner
