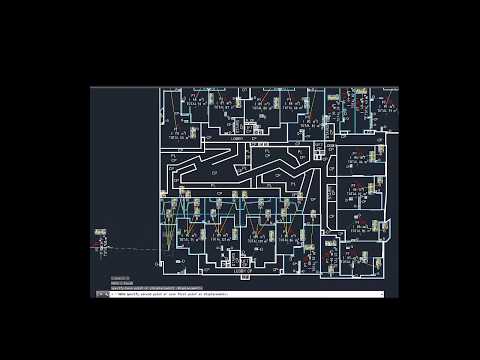

This app automatically link blocks with other block(s) that have the same attribute value by a non-plottable line. Each master block may have many minions. If the attribute value is the same, a line is created automatically linking the master (from insertion point) to the minion (to insertion point). The link will stretch and remain connected to the blocks if the blocks are moved. If the attribute value is changed, the link will disconnect, and reconnect to another similar block if necessary.
If you would like any tailor made app like this one or anything else for your CAD software like AutoCAD, Revit, BricsCAD or the like contact us or take a look at our list of apps.
