AutoCAD 2017.1 Update

AutoCAD 2017.1 Update is a subscription-only update for AutoCAD 2017 and AutoCAD LT 2017 and available either from your Autodesk Account or by using the Autodesk Desktop App.

Note that even security enhancements and bug fixes are only available for subscription customers. (UPDATE: the update is available for download for non-renters as well, see Steve Johnson’s post When is a subscription-only update not a subscription-only update?) (UPDATE: the update will be available for students. See Shaan Hurley’s post AutoCAD 2017.1 Feature Update for Students)

Import PDF Feature Enhancement - PDFSHXTEXT is a command that you can use after you import a PDF file that contains SHX geometry. It converts any selected PDF geometry into multiline text objects that use a matching SHX font. Several popular SHX fonts are supported. However, Asian Big Font SHX geometry is currently not supported. Commands: PDFSHXTEXT , -PDFSHXTEXT , TXT2MTXT

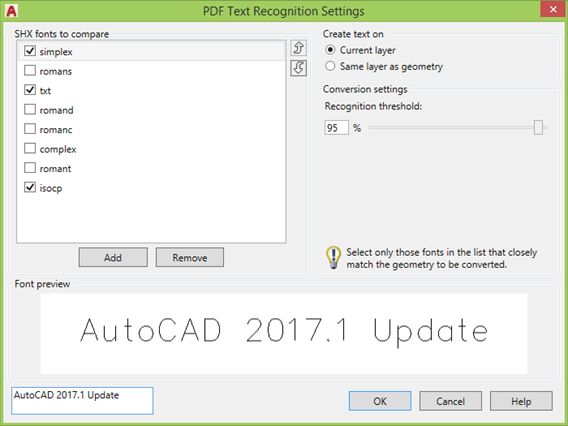

PDF Text Recognition Settings windows:

High Resolution Monitor Support(High Pixels per Inch) is a New Feature - In the AutoCAD 2017.1 Update, common user interface elements, such as the Layer Manager, Command Line window, Property Palette, File Navigation dialog box, pick box cursor, grips, View Cube, and UCS icon, are correctly adjusted to the Windows setting for the display scale.
For the best results, use Windows 10 due to operation system limitations.
Use a compatible video card for the best results.
Some dialog boxes in vertical products are not optimized.

Object Selection Feature Enhancement - Objects that are moved off screen during selection remain in the selection set. All linetype gaps can be selected and available for object snapping when High Quality Geometry is turned on. System variables: SELECTIONOFFSCREEN, LTGAPSELECTION

Linetype gap behavior is enhanced to support complex and DGN linetypes. In addition, this feature works with all objects, such as polylines with width and splines. Now you can select complex and DGN linetypes or snap to them by picking on the gaps between the geometry.

Security Feature Enhancement - Internal software security continues to be enhanced, closing potential exploits.

3D Graphics Performance Feature Enhancement - The performance and reliability of 3DORBIT is improved for rendered visual styles, especially for models with a large number of small blocks containing edges and facets. Command: VISUALSTYLES

Highlight New Features

And here is a couple examples of what it can look like.

As a result of the detailed information that Autodesk received from customers who used the Customer Error Reporting Utility, they were able to identify and fix the problems listed below:

Blocks

  • Fixed occasional crashes when inserting some blocks a second time.

Graphics

  • Fixed occasional crashes when zooming out of a drawing following the 3D Orbit command.

Purge

  • Fixed occasional crashes when purging DXF drawing files.

Web and Cloud

  • Fixed occasional crashes when modifying the Online Options settings and signing in to Autodesk A360 from InfoCenter.

General

  • Fixed occasional crashes when launching AutoCAD in Windows 10.
  • Fixed occasional crashes when inputting the system time in long string format, and then using the DIM command.
  • Fixed occasional crashes when switching layouts.
  • Fixed occasional crashes when performing a 3D rotate in drawings containing a point cloud.
  • Fixed occasional crashes when plotting to PDF using AccoreConsole.exe.
  • Fixed occasional crashes when performing an Undo after detaching a reference using the External References palette.
  • Fixed occasional crashes when PNG images were specified in a CUI resource file.

The following defects have been fixed:

Display

  • Fixed. Xrefs on a frozen viewport layer would still be plotted.
  • Fixed. AutoCAD in Citrix might not default to the primary display adapter.

Open and Save

  • Fixed. Opening a drawing file using an Excel hyperlink was repositioning the AutoCAD application window.

PDF Import

  • Fixed. Importing a PDF Underlay that was attached with relative path could fail.

Xref

  • Fixed. The Xref status incorrectly displays the "Needs reloading" message when the dataset is opened from a UNC path to a shared folder.

General

  • Fixed. When opening drawings created with AutoCAD Architecture, AutoCAD might crash if the drawing was saved again.
  • Fixed. Plotting with certain visual styles might produce incorrect results.
  • Fixed. Migrating custom settings might fail.

The following are known feature limitations in the AutoCAD 2017.1 Update:

​Vertical Products

  • Some AutoCAD vertical product dialog boxes may not be optimized for viewing at scales greater than 100% on high resolution monitors.

TXT2MTXT enhancements are quite many:

  • You can select Mtext objects in addition to text objects.
  • A Settings option on the Command line displays the Text to MText Settings dialog.
  • Character codes translate correctly between Text and Mtext (for example the degree symbol appeared as %%d when converted to Mtext).
  • The “Select objects” prompt adheres to standard error checking and messaging. For example, objects on locked layers are filtered from the selection set, and so on.
  • Justification (Top left, Top center, Top right) is inferred for the Mtext object being created based on the positioning of the text objects in the drawing instead of always using Top left justification. When no justification can be logically inferred, it defaults to top-left.
  • Numbered and lettered list formatting is inferred when the word-wrap text box is checked. If a line starts with one or two characters followed by a period and up to 10 spaces, list formatting will be applied automatically.
  • An option was added to the Settings dialog box to not combine selection into a single mtext objects (converts text object to mtext without combining).
  • The top-down sorting order is relative to the current UCS and sorting is left-to-right when text objects are collinear. When multiple text objects are collinear, they are treated as if on the same line with a space between them.
  • A new Settings option enables you to force uniform line spacing or maintain existing line spacing.

AcAutoLoader.crx is updated with this update meaning that AutoCAD 2017 App Autoloader Hotfix is included.

See also Autodesk’s blog post AutoCAD 2017 Fall Update and the AutoCAD 2017.1 Update/Enhancement Preview Guide.
