AutoCAD app DimNotes 1.3 released

JTB World’s AutoCAD app DimNotes 1.3 has been released. The news are an added option to preset location and replace settings for each note individually as well as added option to use or not use space when the location is before or after. This makes it even quicker to add noted or comments to AutoCAD dimensions.

The note can be added Above, After with space, After without space, Before with space, Before without space or Below existing text. There is also an option "Replace" to completely replace the text so the associative dimension text is removed if the text is <>.

Location option Replace can be used to add both before and after the dimension. Say the existing dimension text is 28 and the note is (<>) the result will be (28). Even notes using control codes, Text Symbols and Special Characters like
\A0;<> {\H1.5x;}\A2;\H0.71x;%%p0.1 can be used with this result: 28 ±0.1.

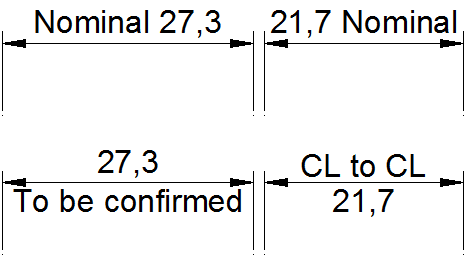

Some examples with notes added before, after below or above.

DimNotes can also be downloaded and installed as an app from the Autodesk Exchange Apps site. Purchase is optionally available through this site as well as here.
